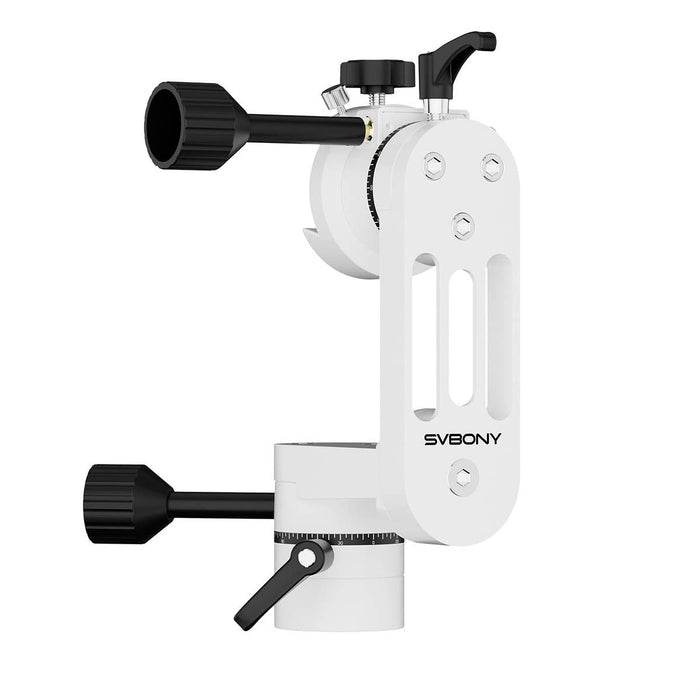

SVBONY SV225 MINI Alt-Azimuth Telescope Mount
Family design with CNC hollow structure the weight of the SV225 MINI Alt‑Azimuth mount is only 1.6 kg making it very portable with light weight Upgraded micro‑adjustment fixation allows fine adjustment of the telescope with a screw fixation that remains stable over time Variable speed gear with no backlash gears on both axes enable smooth slow‑motion control Stable control arm connection reduces idling feel for instant response effective weight capacity 5 kg Suitable for astronomical visual observation and terrestrial surface observation Includes digital scale mark for positioning and adjustment Suitable for beginner astronomy and travel companion
Technical Specifications
| Specification | Detail |
|---|---|
| Net Weight | 1.6 kg |
| Payload Capacity | 5 kg |
| Altitude (Elevation) Range | −60° to +60° |
| Azimuth Rotation | 360° continuous |
| Material | Aluminum 6061T, CNC hollow structure |
| Gear Type | Dual‑axis worm gear (120‑tooth) |
| Backlash | No backlash, no lost motion (minimal play) |
| Mounting Saddle | Vixen‑Style |
| Base Thread | UNC 3/8‑16 Female |
| Fine Adjustment | Yes |
| Digital Scale | Yes |
In the Box
-
SV225 MINI Alt‑Azimuth Mount bracket
-
Height slow‑motion flexible control cable
-
Azimuth slow‑motion flexible control cable
-
Dovetailed main locking knob
-
Dovetailed secondary locking knob
-
Locking screws × 2
-
8 mm L‑type hexagonal socket
Manual & Warranty
