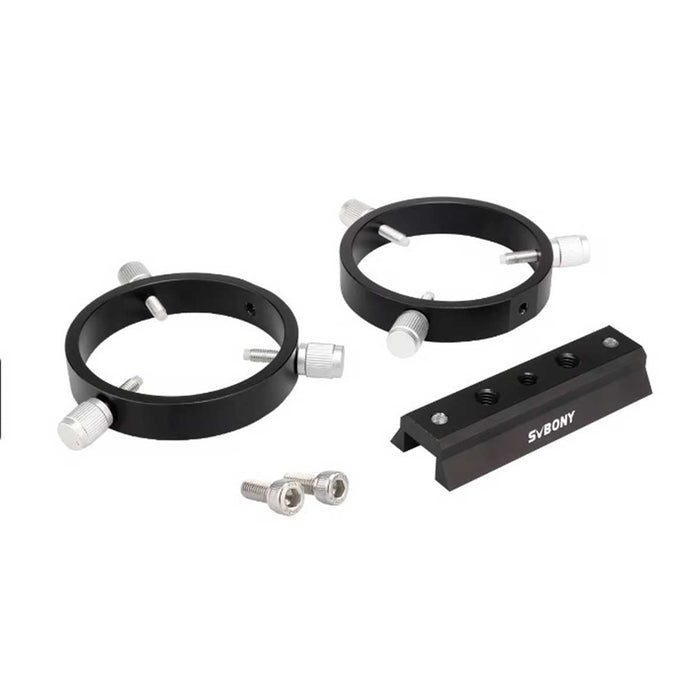

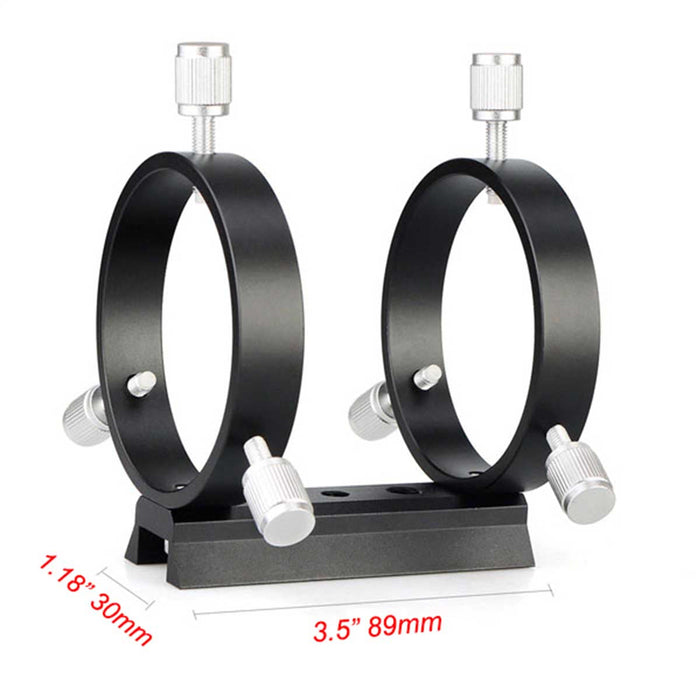

• Two tube rings made of metal;the guide scope rings are suitable for small and medium-sized guiding telescopes;70mm compact deluxe finder guidescope kit;ideal for astrophotography for mounting a guide scope parallel to the main telescope;

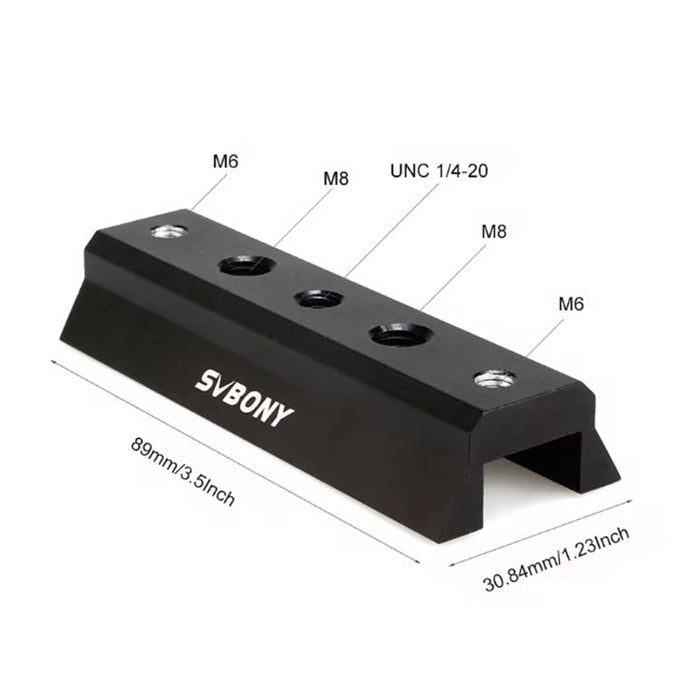

• The mounting bar has two M6 through-holes on both sides for easy adaption to rings. and three threaded through-holes;the center hole has 1/4"-20 threads and the two larger holes on either side of center have M8 x 1.25 threads;
• Solid metal guide scope rings for compact finderscope or guidescope with knurled metal screws. big screws with maximum grip allow easy use - even with gloves;
• The adjustment crews have teflon inlays for avoiding unaesthetic scratches and pressure marks on the telescope while still ensuring reliable clamping;

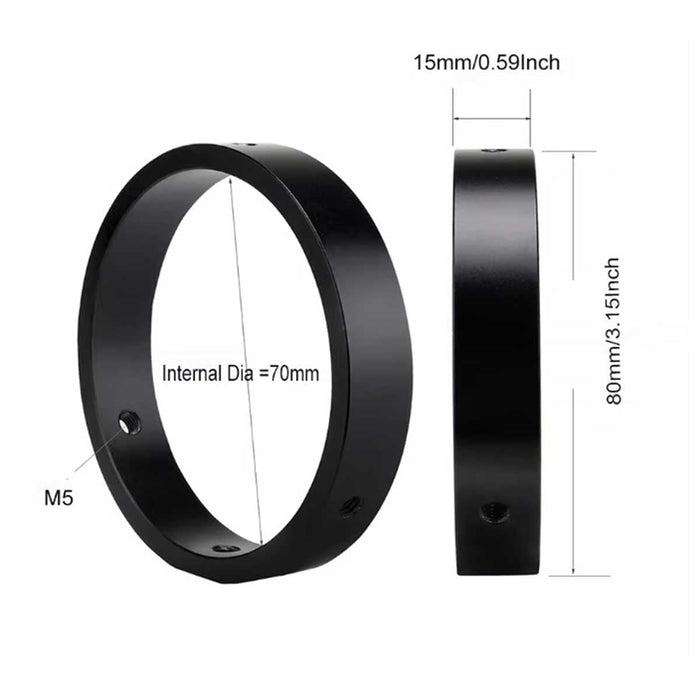

• The inner diameter of the tube rings is 70 mm for telescopes between 43 to 70mm tube diameter can be mounted adjustable;

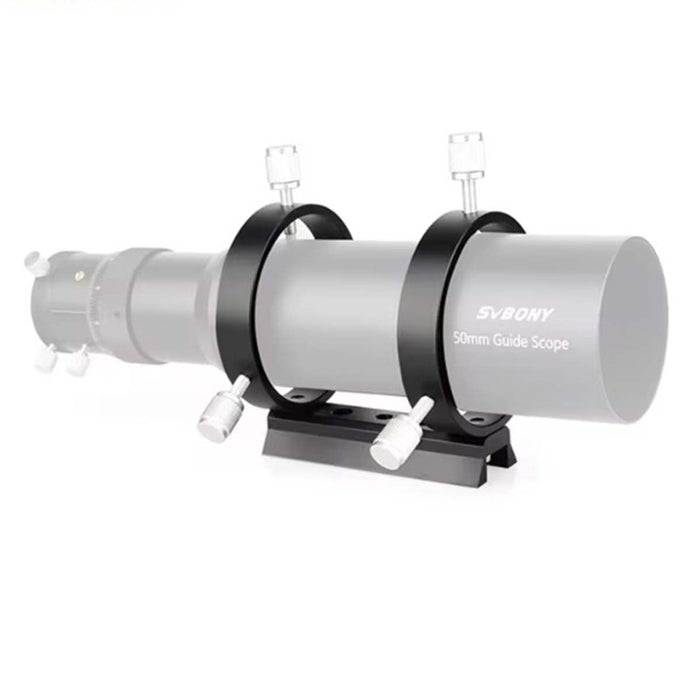

Set of 2 guide scope rings for guide scopes between 43 to 70mm tube diameter. The guide scope rings allow a reliable and above all stable adaption of telescopes parallel to the main instrument. Most common use is astrophotography. With the knurled thumb screws, the guide scope is adjustable and you can centre a sufficiently bright star in the eyepiece or the the autoguider. You can also attach the rings to flat support surfaces like dovetail bars, and get a short adaption to your telescope.

The soft tips of the adjustment screws securely hold the guide scope without marring its surface.

Two fully metal 70mm guide scope rings are suitable for small and medium sized guiding telescopes; ideal for astrophotography for mounting a guide scope parallel to the main telescope.

Technical Specifications

-Fits 43mm to 70mm

In the Box

-SVBONY SV116 Guiding Scope Ring Kit

Warranty & Manual

Svbony 1-Year Warranty
