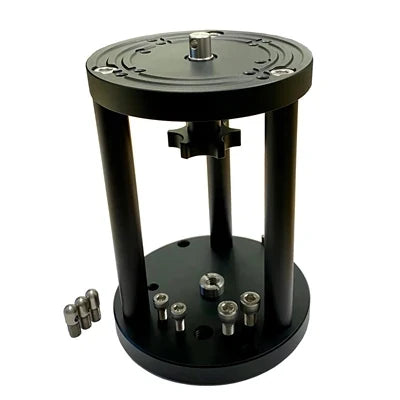

iOptron MiniPier for iOptron Small to Medium Mount

This new versatile iOptron® MiniPier is designed for iOptron GOTO mounts and tripods. The design allows a tripod to access different mount head. It also provide 7" extension for a long telescope. It may fit on other brand tripods with some DIY.

Features Versatile design to adapt most iOptron mounts and tripods CNC machined 3-point leveling (for 8061A carbon fiber tripod only) The following mounts can be mounted onto the MiniPier: HAZ31/46 (3/8”-16 locking knob) CEM26/HEM27/GEM28/HAE29 (2X M6 screws, 83mm separation, 1X center post) CEM40/HAE43/HEM44/GEM45 (2X M6 screws, 103mm separation, 1X center post) HEM15/HAE16/HAE18 ultra compact strain wave gear mount (3/8”-16 locking knob) SkyTracker Pro/SkyGuider Pro (3/8”-16 locking knob) SkyHunter (3/8”-16 locking knob) Camera and other equipment with a 3/8”-16 mounting hole The MiniPier fits these iOptron tripod/pier: Carbon fiber tripod (8061/8061A) CEM26/GEM28 tripod (2X M6 screws, 83mm separation) CEM40/GEM45/iEQ30 tripod (2X M6 screws, 103mm separation) CEM70/CEM60/iEQ45 tripod (2X M8 screws, 120mm separation) CEM25/ZEQ25 tripod (3/8-16 thread adapter) 3211 SmartEQ/SGP/STP/SkyHunter tripod (3/8-16 thread adapter) Tri-pier (M6 and M8screws) Other tripod with 3/8”-16 mounting screw or threaded mounting holes matching the plate mounting holes DOES NOT fit onto the following pier: Tri-pier 360/360A Permanent pier Be caution for the unbalanced heavy payload use when using leveling function.

Technical Specifications

• Height: 178mm (7")
• Top plate diameter: 124mm
• Bottom plate diameter: 134mm, with 3 recessed holes for working with 8061A for fine leveling adjustment

In the Box

iOptron MiniPier for iOptron Small to Medium Mount

Warranty

iOptron warranty
